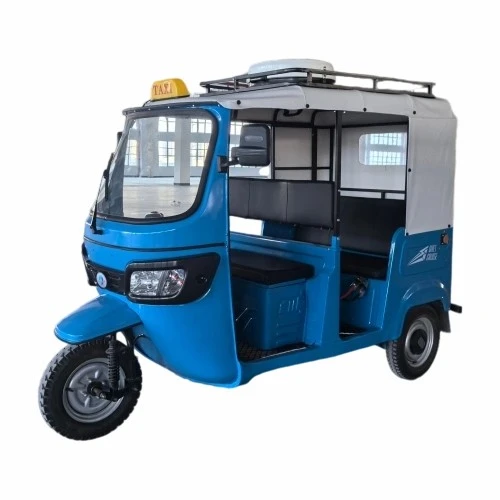

This 5-seater electric passenger rickshaw is designed for safe, eco-friendly, and cost-efficient urban transportation. With a spacious cabin and robust steel frame, it comfortably accommodates up to four passengers, making it ideal for family use, short-distance commuting, or tourist transport.

Parameter

Vehicle size	270012501780
Seat	The 1200mm rear seat can accommodate 3 passengers, and 2 for front seat
Frame and structure	Lightweight bearing body, using high strength plate and bar combination welding
Drive motor	72V3KW permanent magnet synchronous,IP67 waterproof
Controller	72V120A intelligent controller, with steep descent, anti-slip slope, IP65 waterproof
Front shock absorber	Aluminum alloy rack type front reduction, with high comfort and strong load capacity
Rear shock absorber	High strength rear tow arm structure, automotive compound spring damper rear shock absorber
Rear axle	Precision-manufactured rear-mounted high-power transmission, using ball cage drive shaft straight transmission, zero efficiency loss
Front and rear tires	Front tires 3.750-12, rear tires 400-12 steel wire tires
Battery	72V/100Ah lithium iron phosphate battery, 72v12A charger (charging time 6.5-7.5H)
Load capacity	400-500kg, 5 people
Maximum speed	55km∕h
Cruising range	105KM(72V/100Ah battery, without charge)
Consumption	6.8KW/ 100km (35KM/h average speed)
Maximum torque and power	Motor output 42N.m/r/min;
Weight	Curb weight 305KG, GVW 425KG
Wheelbase	2005mm
Minimum ground clearance	220mm
Color	Red,orange,blue,army green,white
Afterburner shifting	8.8:1 single-speed transmission
Braking system	The front 180mm hydraulic oil brake, the rear 220mm hydraulic oil brake, all the 3 brakes work at the same time

Feature

Zero-Emission Electric Power – Powered by a high-capacity battery (72V/100Ah), it offers a range of 105km per charge, reducing fuel costs and environmental impact.

Stable & Safe Design – Equipped with three-wheel balance, hydraulic brakes, and shock absorbers for smooth rides even on rough roads.

Weatherproof Cabin – Features a durable canopy with optional side curtains, protecting passengers from sun and rain.

Affordable Operation – Low maintenance costs (no engine/oil changes) and no road tax in many regions.

Applications: School transport, rural taxi services, resort shuttles, and urban last-mile mobility. A practical, economical, and sustainable alternative to traditional fuel-powered vehicles.
