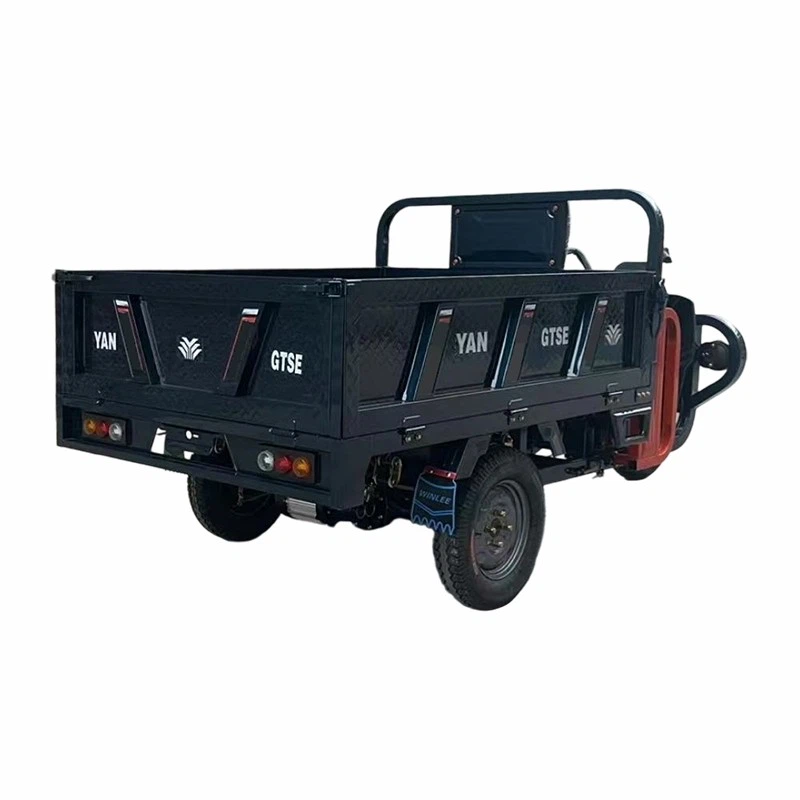

The 1.8-meter electric cargo tricycle is a compact and efficient zero-emission vehicle designed for urban last-mile deliveries and small-scale logistics. Powered by a rechargeable battery, it provides eco-friendly, low-noise, and cost-effective transportation for goods in crowded city areas. Ideal for: Urban deliveries, street vendors, or warehouse logistics needing a cost-effective and heavy-duty transport solution. Widely used in Asia, Africa, and Europe, this electric trike supports sustainable urban logistics and micro-mobility solutions.
Parameter
|
Vehicle size |
3190*1280*1360 |
|
Cargo box dimensions |
1800*1200*590 mm double guardrail |
|
Frame and structure |
50*70*2 main frame, reinforced version equiped with bumper, built-in steel, seated frame |
|
Drive motor |
72V2500W-140 - Permanent magnet synchronous motor,IP67 waterproof |
|
Controller |
72V95A intelligent controller, with steep descent, anti-slip slope, IP65 waterproof |
|
Front shock absorber |
43mm front shock absorber with external spring and internal hydraulic damping |
|
Rear shock absorber |
Double plate spring, lower 5 pieces, upper 3 pieces, specifications 620*50*6 with grooves |
|
Rear axle |
Chongqing Qiaoguan 9 generation Changan One full suspension 5-hole rear axle, two-speed transmission, 60mm axle tube, 12:23 transmission |
|
Front and rear tires |
Front tires 4.00-12, rear tires 450-12 steel wire tires |
|
Battery |
72V/58Ah lead-acid maintenance free battery, 72v7A charger (charging time 8H) |
|
Load capacity |
500-800kg |
|
Maximum speed |
40km∕h |
|
Battery capacity |
Maintenance-free lead-acid battery: 72V/80A, lithium iron phosphate battery: 72V/150A |
|
Cruising range |
85KM(72V/58Ah battery, without charge) |
|
Consumption |
4.8KW/ 100km (35KM/h average speed) |
|
Maximum torque and power |
Motor output 52N.m/r/min; |
|
Curb weight |
420kg |
|
Wheelbase |
2165 mm |
|
Minimum ground clearance |
220mm |
|
Color |
Red, orange, blue, army green |
|
Afterburner shifting |
12:23 Two-speed booster transmission |
|
Braking system |
Front 130mm mechanical hub type, rear 220mm mechanical hub type |
Feature
Zero Emissions: Eliminates pollution, ideal for green city initiatives.
Payload Capacity: 500–800 kg, suitable for small businesses and vendors.
Battery Range: 85 km per charge, sufficient for daily urban routes.
Affordable Operation: Saves 50–70% on fuel and maintenance compared to gas-powered trikes.
Compact Design: Narrow 1.8-meter width ensures easy maneuverability in tight spaces.
Detail
Durable & Sturdy Construction
Reinforced Steel Frame: Designed to withstand heavy loads (500–800 kg) and rough terrain, ensuring longevity.
High-Quality Materials: Robust cargo bed with anti-rust coating and puncture-resistant tires for daily commercial or industrial use.
Low-Cost Operation
Energy-Efficient Electric Motor: Powered by a rechargeable battery, it significantly reduces fuel expenses compared to gas-powered alternatives, with minimal maintenance costs.
Long-Term Savings: No licensing/registration fees in many regions (as per local laws), and electricity costs are far lower than fossil fuels.
