EV 1.8T Cargo Truck LHD/RHD

EV 1.8T Cargo Truck LHD/RHD

Details
Drive type 4×2
Load Mass(kg) 800
Curb Mass(kg) 850
Wheelbase(mm) 2320
Max Speed(km/h) 57
Max Gradability(%) 30
Working Range(km) ≥120
Width(mm) 1400
Battery Type Lithium Iron Phosphate (LFP)
Battery Capacity(kwh) 12.748
Charging Time (h) 4
Motor Power(kw) 7.5/14.5
Motor Torque(N.m) 55/100
Category
Truck
Share to
Send Inquiry
Description
Technical Parameters

Introduction

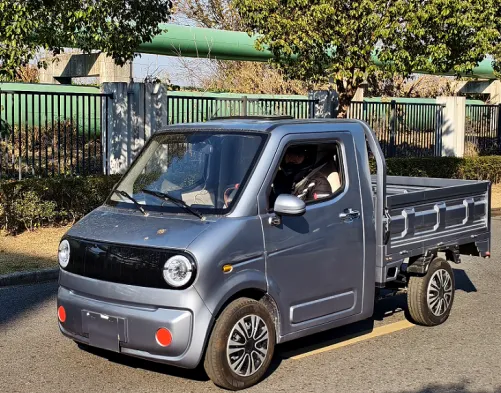

Yangtse brand WG5022XXYBEV pure electric van transport truck/pure electric truck chassis is a brand new product developed by Yangtse Automotive Group Limited Company. The drive motor of this model adopts the JY7230421NA AC asynchronous motor produced by Chongqing Kecheng Motor Manufacturing Co., Ltd., and the eTruck 3000 cab produced by Baoying County Hengyi Auto Parts Factory, with a wheelbase of 2320mm.



Parameter



Overall Vehicle Length (mm)

3620

Overall Vehicle Width (mm)

1490

Overall Vehicle Height (mm)

1650

Inner Cargo Box Length (mm)

1560

Inner Cargo Box Width (mm)

1340

Inner Cargo Box Height (mm)

895

Wheel Base (mm)

2320

Track (Front/Rear) (mm)

1240/1260

Overhang (Front/Rear) (mm)

500/800

Number of Wheels

4

Curb Weight (kg)

870

Rated Payload Mass (kg)

625

Gross Mass (kg)

1495

Cargo Box Volume (m³)

1.87

Approved Passenger Capacity of Cab (person)

2

Front/Rear Tire Specification

155/70R13

Maximum Speed (km/h)

57

0-50km/h Acceleration Time (s)

28

Braking Distance (30km/h)

4.2m (Unloaded), 7.8m (Loaded)

Grade Holding Capacity (°)

14

Maximum Gradient Climbing Ability (%)

≥30

Minimum Turning Diameter (m)

15

Driving Range (km)

120

Minimum Ground Clearance (Loaded/Unloaded) (mm)

140/140

Number of Doors

2

Charging port GB/T 11918.1-2014 220~250V 16A



Feature



ENDURANCE & PRACTICAL

LFP battery delivers >120km range under working conditions with convenient 220V home slowcharging.



POWERFUL PERFORMANCE

Asynchronous motor provides 100Nm peak torque and 30% max gradeability, easily handling complex urban-rural roads.



FLEXIBLE ACCESS

2320mm short wheelbase allows easy navigation through narrow lanes, markets, and residential areas.



COMFORTABLE RIDE

Spacious cabin with ergonomic interior layout ensures comfort even during long drives.
